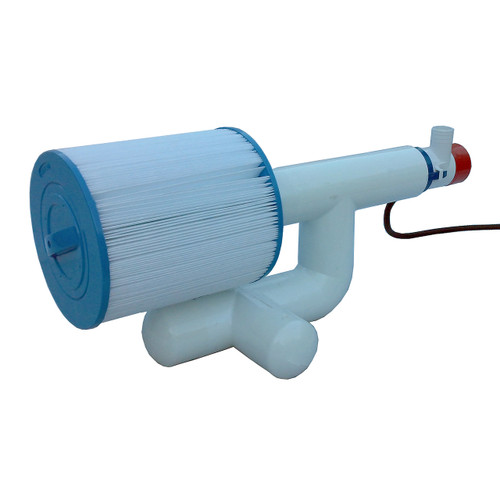

The patent pending Bottom Feeder Pool Filter is needed because of the overwhelming expense you're spending on pumping and filtering your swimming pool water. The Bottom Feeder Pool Filter isn't just different; it's a better way to filter your pool or spa. The Bottom Feeder finally gives you an opportunity to turn off your inefficient, noisy, and expensive to operate pool equipment... and it reduces your pollution which is better for our planet. The Bottom Feeder Pool Filter uses the energy from the sun to pump up to 15,000 gallons a day through (3) three reusable 20 micron filter cartridges. The Bottom Feeder Pool Filter is EASY and requires less maintenance than your existing pool filter.
- This Pump and Filter System pays you to own it, from $1.00 to $5.00 EVERY SINGLE DAY!
- Pool, Spa and Water pump and filter system that SAVES ENERGY and MONEY!
- Pumps and Filters up to 15,000 gallons per day through 3 reusable 20 micron filter cartridges
- Easy installation
- Zero Energy Cost
- Noise-Free Operation
- Alternative Pump and Filter System
- Maintains family-safe water quality
- Pays for itself in just months
- One year limited warranty
- Made in the USA
Patent Pending | Natural Current LLC | Michael Evingham | Dana Point, CA | USA
Pump and Filter System Size: 17 ½ W x 17 ½ L x 25 ½ H inches
Pump and Filter System Weight: 33 lbs.
Pump and Filter System Body Type: Polyvinyl Chloride
Filter Media: 216 pleat count, 3-ounce reemay 2033; 20 micron cartridges
Filter System Effective Filtration Area (Sq Ft): 156 square feet
Pump Flow Rate: 15,000-Gallon-Per-Day(GPD)
Pump Flow Rate: 1,500-Gallon-Per-Hour (GPH)
Pump Flow Rate: 25 Gallon-Per-Minute (GPM)
Pump Maximum Head: 10 Feet
Pump Hose Outlet (In.) : 1 1/8
Pump Maximum water Temperature: 104 Degrees F
Pump Typical Life: 2500 hours | 6 Hours a day = 416 days |
Pump New Replacment kit cost: $75.00 FOB
Pump Voltage: 12
Pump Amps: 4.8
Pump Shaft Material: Stainless Steel
Pump Certifications: UL, CE and ISO 8849
Solar Panel: Solar 125 watt, 12 volts, 7.11 Amp Policrystalline Silicon
Solar Panel Operating temperature: -40 to + 85 ºC / - 40 to + 185 ºF
Solar Panel: Dimensions: 57.7 " x 26 " x 1.97 " / 1466mm x 660mm x 50mm
Solar Panel: Weight: 26.51 lb / 12kg
Solar Panel Front glass: 3.2mm tempered
Solar Panel Junction Box: IP-65 rated
Solar Panel Cable lengths: 3 ( ft )
Solar Panel Frame: Anodized aluminum alloy type 6063 - T5
Solar Panel Max Load: 5400Pa
Solar Panel Mounting System: Solar Panel Z Style Flat Mounting Included
Solar Panel UL Certified : E330673
Solar Panel TUV : 0000022551
Solar Panel IEC: C1-ASN07001
Solar Panel ETL : 4001057
Solar Power Cord: 50FT 12 AWG Extension Wires w/ MC4 Connectors
Power Cable made of electron-beam cross-linked insulation and coating; high resistance against heat, cold, oil, abrasion, ozone, UV and weather; with improved reaction in case of fire; low smoke, halogen free, flame free, flame retardant; flexible, easy to strip, very low space requirement, extremely mechanically robust, very long lifetime.
Nominal Voltage: 600 V DC
Temperature rating: 90C, 194F 12 AWG
Reference Standard: UL 4703
Electron-beam cross-linked compounds
Insulation thickness 1.22 mm, 0.048in Insulation: 90 XLPE, black
Jacket thickness 0.8mm, 0.032in 90 XLPE, black or white
Photovoltaic Combiner, breakers and DC Ground Fault Protector Box.
Photovoltaic combiner: Compliance with NEC requirements
Photovoltaic combiner: ETL listed for use in the U.S. and Canada.
Photovoltaic combiner: Mount Type: Wall
Photovoltaic combiner: Enclosure Type: Injection molded insulating
Photovoltaic combiner: Deadfront under aluminum flip-up exterior cover
Photovoltaic combiner: Material Type: Rainproof NEMA 3R aluminum enclosure
Photovoltaic combiner: Dimensions: 10 1/2 L x 5 W x 3 1/2 H (in.)
Photovoltaic combiner: Manufacturer Warranty: 5 year limited warranty
Photovoltaic combiner: Ship Weight: 2.5 lbs
DC Circuit Breaker: Can also work as on-off switch for DC load circuits
DC Circuit Breaker: Class Rating Meets NEC requirements
DC Circuit Breaker: Amps: 12
DC Circuit Breaker: Manufacturer Warranty: 5 year limited warranty
DC Ground Fault Protector: (GFI - UL listed breaker assy)
DC Ground Fault Protector: Solar 63 amp DC ground fault protector
DC Ground Fault Protector: UL listed
DC Ground Fault Protector: NEC2008 requires DC-GFP in ALL installations.
Bottom Feeder 1500 - Solar - Pump and Filter System
Bottom Feeder 1500 Solar item model number: NCSBF15K
Bottom Feeder 1500 Solar UPC #: 091037434456
1-year limited warranty
Posted by Unknown on 26th Apr 2013
This solar powered pool pump is not only more energy efficient than a traditional pool pump, it's also quieter. This pump is so easy to install. There is also a one year warranty!
Posted by Unknown on 26th Apr 2013
My solar pool pump kit has already paid for itself. I have saved so much money since I switched over to a solar pump. Not to mention, it is so easy to install and much quieter.
