Off-the-Grid Home and Garden - Solar Pumps, Heaters & More

phone: 855-372-8467

SunRay Solar Submersible Pump- SOLFLO Pump Motor Showing Data - GPM - Head - Volts - numbers with ie =-SCS 17-280-180 BL

$2,265.00
Write a Review
UPC:
635292291555
Condition:
New
Availability:
Usually ships within 24 hours.

SCS 17-280-180 BL

Solar Submersible Pump, 17GPM, 280FT Head, 180VDC, Brushless Motor





Shipping Weight: 35.00 lbs





Specifications

Flow Range: 10-25 GPM (38-95 LPM)
Controller: 170-320 Ft. (52-98 Mt.)
DC Voltage Range: 120-180
Controller: PCC 180-BLS-M2S
Minimum Well Diameter: 4" (100mm)
Discharge Size: 1 1/4" NPT







Product Details

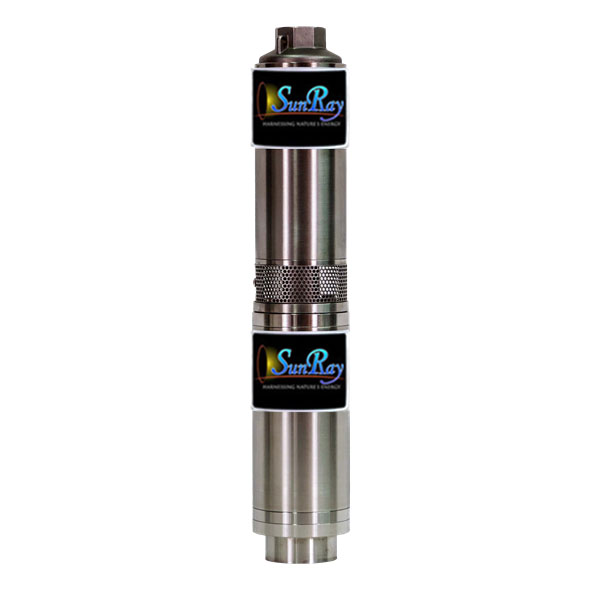

SunRay SCS series submersibles are high quality, maintenance-free, DC powered pumps specifically made for water delivery in remote locations. They operate on 160 to 3000 watts of DC power with voltage choices ranging from 30 to 240 volts.

The submersible motors incorporate the latest in high efficiency, permanent magnet, sensorless brushless DC technology and there are no electronics inside the motor. They are constructed of corrosion resistant, stainless steel.

The pump ends are multi-stage centrifugals constructed of stainless steel. The impellers are wear resistant glass filled, engineered composite and are resistant to mineral and algae deposits. The bowls are constructed of stainless steel for strength and abrasive resistance.

SunRay SCS series pumps can be installed below the water level in a water well, lake, river, or cistern. They can be used to fill an open tank or used to pressurize water systems.

SunRay SCS series pumps are designed for use in stand alone water delivery systems. They are pollution free, corrosion-free, self-lubricating and quiet. There is no better way to provide water for remote homes, small farms, villages, livestock, irrigation as well as many other needs beyond grid power.

SunRay PCA and PCC Sensorless Brushless DC Controllers incorporate the latest state of art technology. The controllers are micro-processor based and have MPPT, Maximum Power Point Tracking to keep the solar array operating at peak efficiency at all times. The control box is powder coated, die-cast aluminum with an extra large heat sink and rated for outdoor use.





Attachments

1-year limited warranty
